FEATURES & DESCRIPTION
These rotary cutters are designed for standard-duty applications such as weeds, grass, and light brush up to 1.5" in diameter. These cutters are designed to work with 15 to 65 hp tractors, and are available in 48", 60", and 72" widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A shear bolt through the input shaft or a slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields.

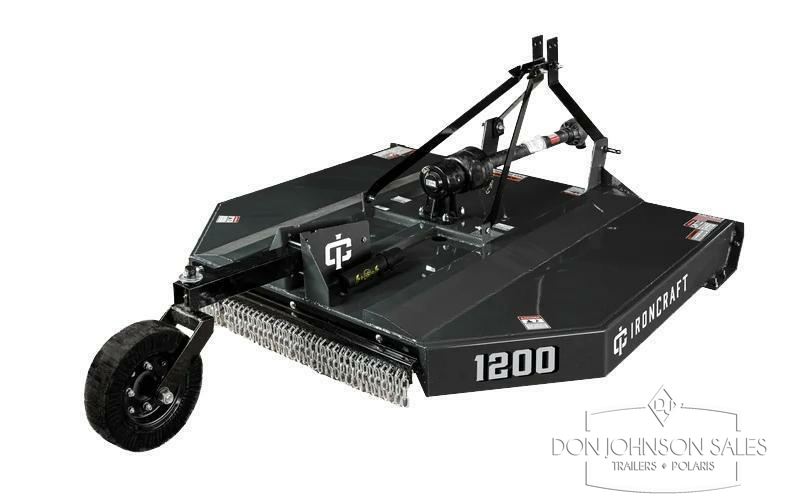

Product Family: 1200 Series
Product: 1205
Description: 5' Standard Duty Cutter
RPM: 540
HP Required: 25-45 PTO
Working Width: 60"
Weight (lbs): 596 lbs
Cutting Capacity: 1-1/2"
Deck Thickness: 11 GA
Side Bands: 7"
Skid Shoes: Replaceable
PTO Drive Shaft: Series 4
Driveline Protection: Shear Pin or Slip Clutch
Blade Holder: Pan
Gearbox Rating: 55 HP
Blades: 1/2" x 3"
Wheel Type: Laminated
Hub Type: Greaseable
Hitch: Cat 1
Gearbox Warranty: 5 year limited
Guarding Options: Rubber Guards or Chains
FPM: 13,000 FPM
