** CALL FOR PRICING **

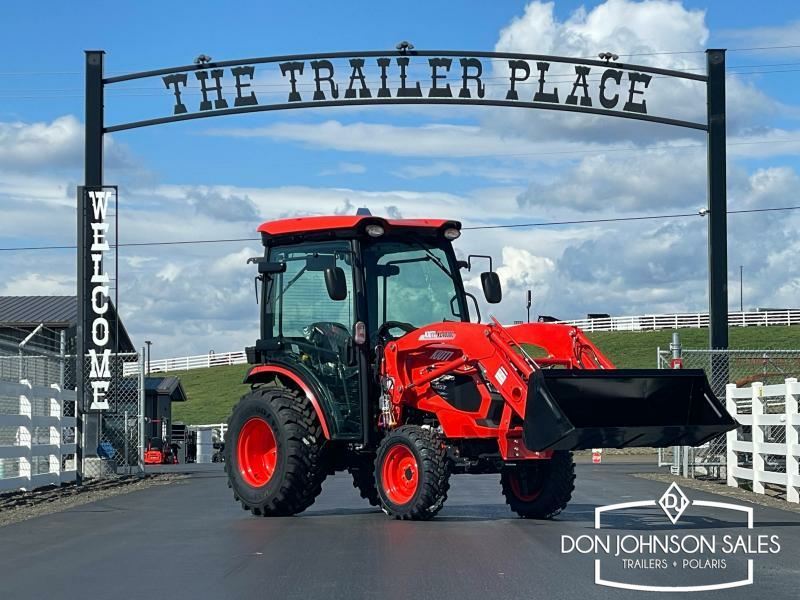

CK3520SEHB CAB w/ R14 Tires, KL4030C Loader, 60" QA Heavy Duty Bucket
Eco-Friendly Diesel Engine
The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Letting you conquer every task with quiet confidence.
Powerful Hydrostatic Transmission
Hydrostatic transmission for effortless control, twin pedals for intuitive forward and reverse movements, seamlessly adjusting speed without ever touching a clutch.
Single Lever Joystick
The single lever joystick redefines front-loader operation. With a flick of your wrist, you command every movement, from raising the boom to lowering the bucket. A float position allows the bucket free flotation over the ground surface.
3-Point Control Lever
Allows you to raise and lower your implements with the slide of a lever with minimal effort yet maximum precision. Handily located lever eliminates the need for climbing and contorting, to attach or detach an implement.
High Ground Clearance
The impressive 13.4" ground clearance lets you glide over rocks and uneven ground to conquer any terrain with confidence.
Factory Installed Cab
The deluxe factory-installed full size cab with air conditioning and heat lets operators perform tasks comfortably in any weather condition.
FULL SPECS
ENGINE
Model: 3H-TM4B
Engine Manufacturer: KIOTI
Power: 34.90 hp (26 kW)
Displacement: 111.40 cu. in. (1,826 cc)
RPM: 2,600 rpm
Fuel Type: Diesel
Aspiration: Intercular
Fuel Capacity: 9 gal (34 L)
TRANSMISSION
Transmission: Hydrostatic
Shuttle: Hydrostatic
Travel Speeds Forward: 3 Ranges, w/ infinite speeds
Travel Speeds Reverse: 3 Ranges, w/ infinite speeds
Travel Speeds Minimum Speed: 0 mph (0 km/h)
Travel Speeds Maximum Speed: 14.88 mph (23.94 km/h)
Travel Speeds Min Reverse Speed: 0 mph (0 km/h)
Travel Speeds Max Reverse Speed: 16.76 mph (10.41 km/h)
PTO
PTO Type: Independent
PTO Power: 28.90 hp (21.60 kW)
Rear Speed: 540
Mid Speed: 2,000 (Optional)
DRIVE TRAIN
Brakes: Wet Disc Type
Clutch: None
Steering: Hydrostatic Power Steering
HYDRAULICS
Pump: Gear
Pump Capacity: 11.30 gpm (42.90 lpm)
Lift Capacity: 1,631 lb (740 kg)
HITCH
Type: Three Point
Category: Category 1
Control Type: Position
Lift Capacity: 1,631 lb (740 kg)
DIMENSIONS
Width: 54.50 in (1,385 mm)
Height: 92.52 in (2,350 mm)
Wheelbase: 65.70 in (1,670 mm)
Ground Clearance: 13.40 in (340 mm)
Front Tread: 48.20 in (1,225 mm)
Rear Tread: 47.60 in (1,210 mm)
Turning Radius: 8.96 ft (2.73 m)
Weight: 3,397 lb (1,541 kg)
Length with Hitch: 120.90 in (3,070 mm)
