** CALL FOR PRICING **
ADDED FEATURES
Industrial Tires

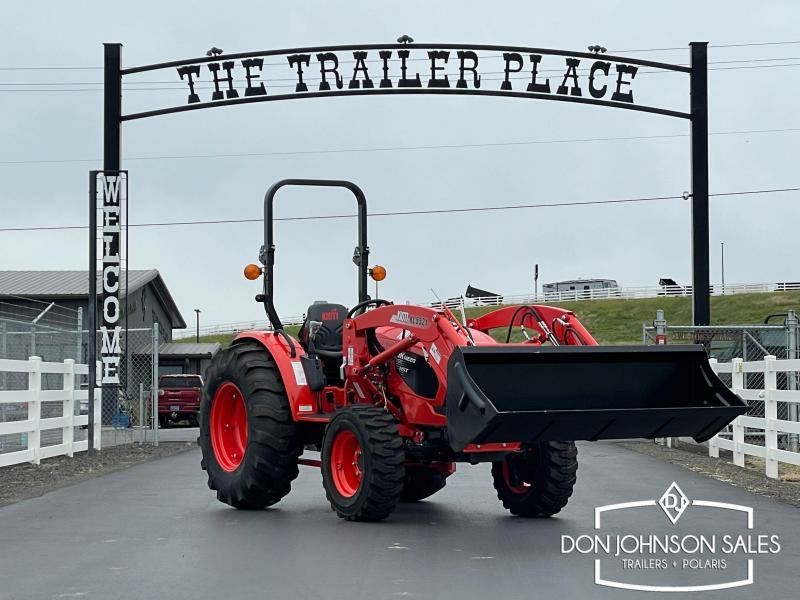

KL5810 Loader
72" QA Bucket
FEATURES
Convenience Features
A deluxe suspension seat, PTO cruise, high ground clearance, power and tilt steering wheel, center marker, projection and working lamp, and a removable engine panel to check service points with ease.
Safety
Wet disc brakes, a sturdy ROPS, and a secure seatbelt keep you safe. Headlights, safety lights, and a rear work light let you see attachments and drawbars clearly, even in low-light conditions.
Attractive Options
Dress up your tractor with impressive options. Swap standard tires for turf, industrial, or R14 tires. Throw on a sunshade to keep you cool or front weights to boost stability for heavy lifts.
Rugged Performance
Dependable, liquid-cooled KIOTI 3-cylinder diesel engine hums with fuel efficiency, ready to take on demanding jobs all day long. Engage the rear differential lock for unflinching traction, then command a universe of implements with the push-button hydraulic PTO.
SPECIFICATIONS
ENGINE
Power: 39.60 hp (29.50 kW)
Displacement: 111.40 cu. in. (1,826 cc)
RPM: 2,600 rpm
Choke: Auto
Fuel Type: Diesel
Aspiration: Natural
Fuel Capacity: 12.70 gal (48 L)
TRANSMISSION
Transmission: Automatic - Hydrostatic
Shuttle: Hydrostatic
Travel Speeds Forward: 3
Travel Speeds Reverse: 3
POWER TAKE-OFF
PTO Type: Independent
PTO Power: 29.10 hp (21.70 kW)
Rear PTO Speeds (1st): 540 rpm
Mid PTO Speeds: 2,000 rpm
DRIVE TRAIN
Brakes: Wet Multi Disc
Clutch: None
HYDRAULICS
Pump: Gear
Pump Capacity: 16.50 gpm (62.40 lpm)
Lift Capacity: 2,716 lb (1,232 kg)
HITCH
Type: Three Point
Category: Category 1
Control Type: Position
Life Capacity: 1,500 lb (2,400 kg)
DIMENSIONS
Length with Hitch: 125.50 in (3,189 mm)
Width: 62.80 in (1,596 mm)
Height with Cab: 96.80 in (2,458 mm)
Wheelbase Length: 71.30 in (1,810 mm)
Ground Clearance: 14.50 in (368 mm)
Front Tread: 49.40 in (1,254 mm)
Rear Tread: 49.30 in (1,251 mm)
Turning Radius: 102.80 ft (2,610 m)
Weight: 3,523 lb (1,598 kg)
