** CALL FOR PRICE **

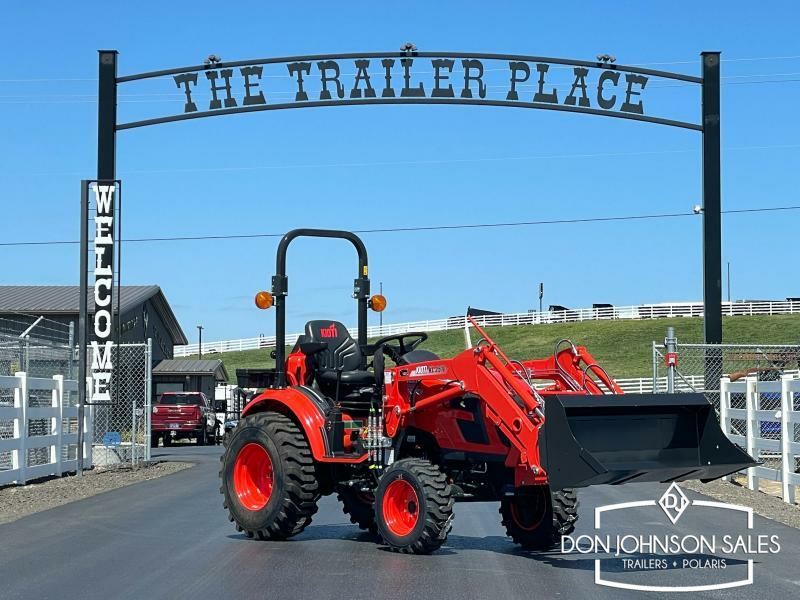

CX2510HB - R14 Tires / KL2510 / 50" QA bucket and grill
Manual or Hydrostatic Transmission
Infinite 2-range hydrostatic (HST) transmission for effortless control, twin pedals for intuitive forward and reverse movements, seamlessly adjusting speed without ever touching a clutch.
Convenient Features
Features a comfortable suspension seat, single lever joystick, tilt wheel with power steering, rear PTO, adjustable 3-point hitch, illuminated dashboard, USB and power socket.
Open Station Platform
Every control, every button, every lever falls effortlessly within reach, like an extension of your own will. This intuitive layout isn't just about luxury, it's about efficiency.
Single Lever Joystick
The single lever joystick redefines front-loader operation. With a flick of your wrist, you command every movement, from raising the boom to lowering the bucket. A float position allows the bucket free flotation over the ground surface.
FULL SPECS
ENGINE
Model: 3A165LWH-U2
Engine Manufacturer: KIOTI
Power: 24.50 hp (18.30 kW)
Displacement: 87 cu. in. (1,647 cc)
RPM: 2,600 rpm
Fuel Type: Diesel
Fuel Capacity: 6.60 gal (25 L)
TRANSMISSION
Transmission: Manual
Shuttle: Manual
Main Gear: Manual
Travel Speeds Forward: 10
Travel Speeds Reverse: 4
Travel Speeds Minimum Speed: 0.75 mph (1.22 km/h)
Travel Speeds Maximum Speed: 10.80 mph (19.07 km/h)
Travel Speeds Min Reverse Speed: 0.92 mph (1.51 km/h)
Travel Speeds Max Reverse Speed: 4.20 mph (7.40 km/h)
PTO
PTO Type: Transmission
PTO Power: 19.30 hp (14.40 kW)
Rear Speed: 540 rpm
Mid Speed: 2,000 rpm
DRIVE TRAIN
Brakes: Wet Disc Type
Clutch: Dry Single Stage
Steering: Hydraulic Power Steering
HYDRAULICS
Pump: Gear
Pump Capacity: 11.30 gpm (42.90 lpm)
Lift Capacity: 1,203 lb (546 kg)
HITCH
Type: Three Point
Category: Category 1
Control Type: Position
Lift Capacity: 1,203 lb (546 kg)
DIMENSIONS
Length with Hitch: 109.08 in (2,790 mm)
Width: 49.40 in (1,256 mm)
Wheelbase: 59.80 in (1,520 mm)
Ground Clearance: 13.40 in (340 mm)
Front Tread: 38.10 in (968 mm)
Rear Tread: 37.40 in (951 mm)
Turning Radius: 9 ft (2.75 m)
Weight: 2,308 lb (1,047 kg)
Height: 82.80 in (2,103 mm)
